Product Description
- VXDIAG VCX SE for Subaru OBD2 Diagnostic Tool
- Software version: V2022.1
- SSM3 supports vehicle 2005- 2020 year, ssm4 support vehicles 2016 onwards
- Offer Free DONET
- Support to add license for other brands.

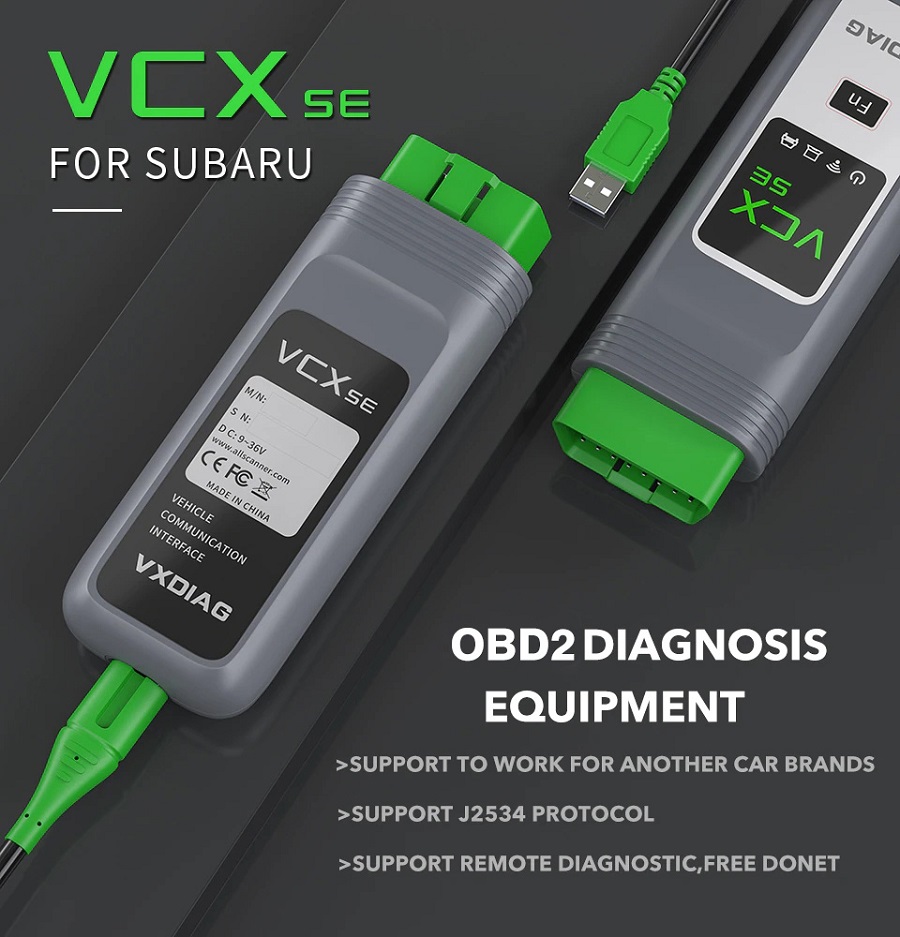

VXDIAG VCX SE for Subaru OBD2 Scanner Car Diagnostic Tool with 2022.1 Full System Diagnosis SSM3 SSM4 Software Support WIFI
VXDIAG VCX SE for Subaru is an automotive diagnostic tool which supports SSM3 and SSM4 software to the 2022.1 software version. SSM3 supports vehicles 2005- 2020 year, SSM4 support vehicles from 2016 onwards. It has license for Subaru and license for other car brands can be activated too with additional license fee.
VXDIAG VCX SE for Subaru is able to access all systems for diagnosing, repairing, programming, including reading and clearing code, reading dynamic data stream, action test, activating components, replacing and programming module, retrofitting and modifying the car's configuration, replacing and upgrading ECU, doing personalized settings, etc.
Product Features:
1. Software Version: SSM3 V2022.1, SSM4 V22.6.0, FlashWrite2 V1.3.4
2. Support Multi-languages: English, Japanese, French, German, Spanish, Italian, Russian, Chinese, Polish. (Change SSM3 & SSM4 language)
3. Support Type-C USB, WIFI connection and RJ45 cable connection, offer free DONET.
4. Vehicle coverage: 2005-2020
5. Available Systems: Recommend Windows 7/ Windows 10 64bits Professional Edition. (Software Installation Video)
6. Able to add license for more brands
7. Support original functions with online account
Product Functions:
1. All system diagnosis, action test, brush hiding function, read and clear code,etc.

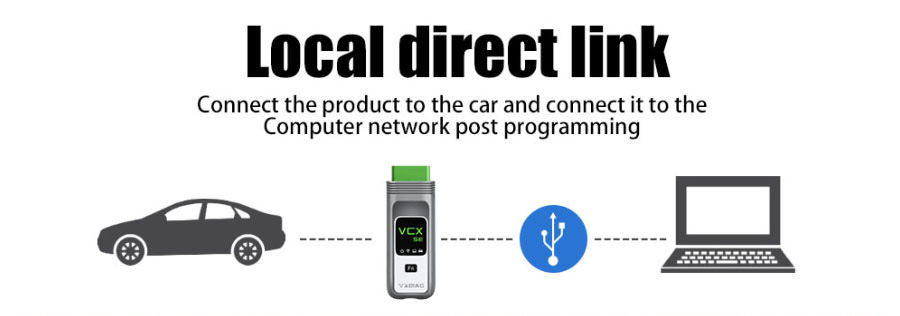

2. Support WIFI, USB connection, RJ45 cable connection, you can connect the device to your laptop via the WIFI, USB cable or RJ45 cable.
3. Support J2534 protocol/standard OBD2 16 pin interface.
4. Program and install new ECU(PCM, ABS, instrument cluster, air bag, fuel pumps, etc.)
5. Live data-stream with recording & playback functions for main ECUs
6. Read and clear diagnostic trouble codes (DTCs)
7. Set, adjust or remove speed governors
8. Automatic vehicle recognition
9. New software re-flash for existing ECUs
10. Reset steering angle
11. Find guided fault
12. DPF regeneration
13. Brake bleeding
14. Injector coding
All System Diagnosis. This item displays the following on a single screen, the fault detect status of all control system, control modules that SSM3 diagnosis is supported, and memorized diagnostic codes.
Each System Check. This item makes it possible to select a particular system from among the control systems that SSM3 diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes and other data on the PC display. This item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations and to load data for viewing after work is complete.
Immobilizer. This item performs immobilizer registration.
Reprogram. This item performs reprogramming of the control module.
Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
Convert/save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.
Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.
Program Subaru smart key (Require online account)
Product Specifications:
Product Dimensions: 14cm*5cm*2.5cm
Product Weight: 0.3KG
Package Includes:
1pc x VXDIAG VCX SE Subaru
1pc x USB Cable
1pc x Carry Case
----------------------------------------------------------------------------------------------------------------------------------------
If you have any questions about the device, the price or the payment, please feel free to contact us.
E-Mail:Sales@carTool.co.uk
Skype:carTool.co.uk
Whatsapp: 86-15271813909
Shipping Method & Delivery
1) UK/EU Warehouse Shipping: 2-4 working days with No Tax. We have stock in our UK and EU warehouse for most items.
2) 4PX Express: 6 days with Tax Free for UK customers.The tax was pre-paid by us, when package reached, there's no tax no extra fee for customers.
3) Yanwen Express: 10-12 working days for European Countries. Our company have IOSS, declare under 150 EUR, seller pay tax, customers no need to pay tax, So usually no tax or extra fee for EU customers.
4) DHL Shipping: 3-5 working days. For the items have no stock in UK warehouse, we will ship it by DHL. We will declare a lower price on the invoice to help your clearance.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: sales@cartool.co.uk
Technical Support
If you cannot download software in the default CD, or if you need technical support for software install, please send email to sales@cartool.co.uk, we will help you by Teamviewer.
