Launch X-431 Sensorbox S2-2 DC USB Oscilloscope 2 Channels Handheld Sensor Simulator and Tester for X431 PAD V, PAD VII

Product Description

Development Backgrounds:

The sensor is the signal input device of the vehicle ECU. It converts vehicle operating parameters such as vehicle speed, coolant temperature, engine speed, air flow, and throttle opening into electrical signals and sends them to the vehicle ECU. Then, the vehicle ECU adjusts the engine running status to maintain the engine in optimal condition.

Features:



1. Check the ECU itself works or not.

2. It supports manually writing the waveform data.

3. Simulate working condition of sensors without replacing parts.

4. Simulate some special working condition of sensors without replacing parts.

5. Be used as a Multimeter to measures resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.

6. One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.
7.Integrate with X-431 series scan tools (such as X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 V+ V5.0, X431 Pro3S+ V5.0, X431 PAD V, X431 PAD VII, X431 IMMO Elite, X431 IMMO PLUS) through the O2-2 application for conclusive diagnostic results.




Functions:

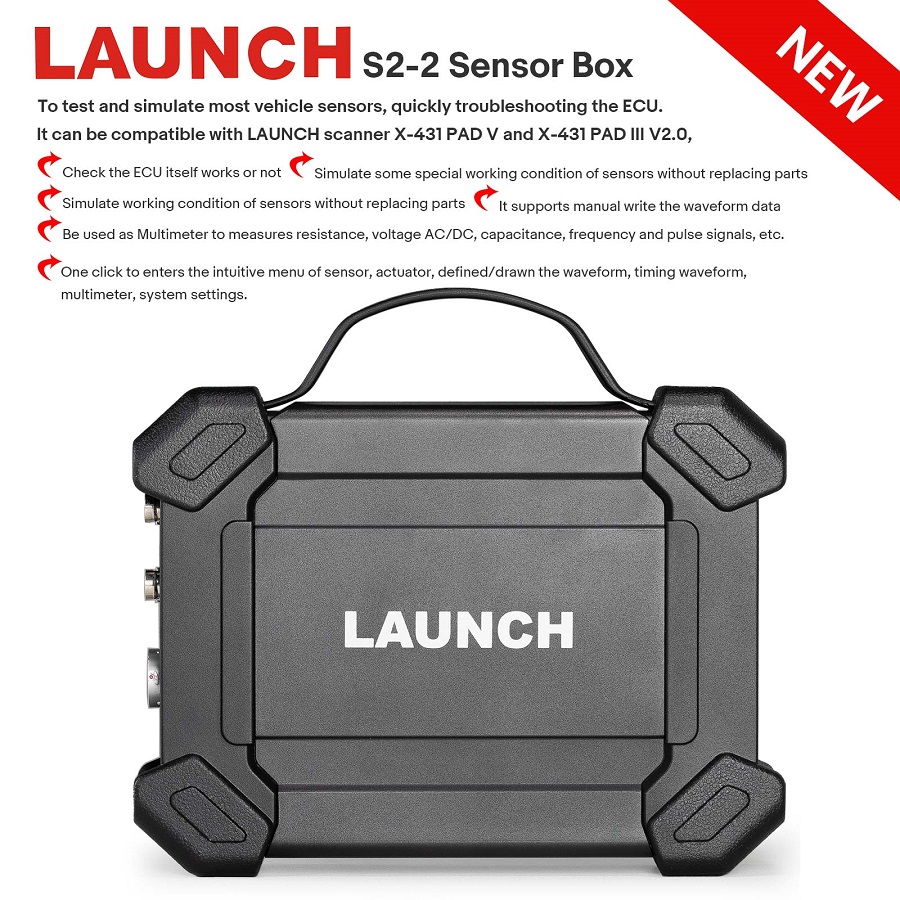

LAUNCH S2-2 sensor box mainly includes "Sensor", "Actuator", "Defined/Drawn", and "Timing Waveform".

Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.

Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.

Multimeter: Through this function, users can test voltage, resistance, and capacitance.



Defined:


Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.

Frequency: Set the frequency of the selected waveform.

Amplitude: Set the amplitude of the selected waveform.

Offset: Set the offset of the selected waveform.

Phase: Set the phase of the selected waveform.

Duty cycle: Set the duty cycle of the selected waveform.

Signal sync: Can cause CH1 and CH2 to output signals at the same time.



Hand-drawn:


Total frame: 1-3 (optional). Indicate the total number of output points

Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.

Edit frame: You can edit a single frame or edit all

Waveform: You can select a preset waveform and place it in the hand-drawing area

Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)

Amplitude: Amplitude of the output waveform

Offset: Offset of the output waveform



Timing Waveform:

The function is used to match the timing waveform (crankshaft + camshaft) of the engine.



Technical Parameters:
Sensor Module:

Number of channels: 2

Precision: 1 %

Amplitude range: 0 – 20 V

Max output current: 20 mA

Predefined frequency range: 0 – 20 kHz

Square wave signal pulse frequency: 0 – 15 kHz

Square wave signal duty cycle: 0 – 100 %

Power supply: Simulator sensor output/max current 20mA (output is powered by battery) – Drive solenoid, ignition coil/output current 2A (external power supply)

USB: USB2.0 Type B (with charging and power supply function/5V)

DC voltage simulation: Support

Fixed frequency simulation: Support

Predefined waveform simulation: Support

Hand-drawn waveform simulation: Support

Signal generator interface: 2

External power supply port: 1

Solenoid interface: 1

Multimeter interface: 2

Working temperature: 0 °C – 50 °C

Storage temperature: -30 °C – 70 °C



Multimeter:

DC voltage: 0 V – 700 V

AC voltage: 0 V – 700 V

Resistance: 0 Ω – 40 MΩ

Capacitance: 0 F – 100 µF (maximum 30 s measurement time)

Diode: 0 V – 1,5 V

Continuity detection: Sounds below 30 Ω

Package Includes:


1pc x Sensor module

2pcs x  HT30 test leads

1pc x 7-pin interface adapter cable

1pc x Battery clamps cable

1pc x USB cable

3pcs x 6-way breakout lead

2pcs x Multimeter test pen (black + red - )

5pcs x Colored 4mm female probes

20pcs x Needles

1pc x Power adaptor

2pcs x Screw heads

1pc x User manual

1pc x Packing list

1pc x Box

----------------------------------------------------------------------------------------------------------------------------------------
