1. Professional key programming tools, support all lost keys and add new keys. Specialist VW/Audi, BMW and Mercedes functions
2. Complete OE-Level system diagnosis + 39 Reset services
3. Full bi-directional control (active test) + ECU coding + ECU module clone
4. FCA “Auto Auth” Access
5. 2 years free update, 1 Year Software subscription is $499/Year.
6. Auto scan + remote diagnostics + diagnostic feedback…
7. VAG Guided Functions: Offer step-by-step instructions and guide technicians to do fast repairs.
8. AutoAuth for FCA SGW
9. Add-on modules: Optional. BST360 Battery Tester, S2-2 Sensorbox, Multimeter and Videoscope etc.
10. Multilingual Support: English,Simplified Chinese, Traditional Chinese, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech, Italian
APP language: English, German, Russian, French, Traditional, Portuguese, Japanese, Spanish, Italian
11. Supports 2018+ Toyota 8A smart key and BYD all key lost (with emulator key)
12. NEW! Update VAG MQB NEC35XX add key and all keys lost (May 2023)
13. NEW! Supports VW Audi IMMO4 IMMO5 MQB/MLB gearbox module replacement (June 2023)
LAUNCH X431 IMMO PLUS key programmer is a new generation of 8-inch automobile special IMMO matching tool with high configuration and super performance. The host is developed based on the Android 10.0 open system, adopts a 2.0Ghz 4-core high-efficiency processor, 4GBRAM+64GBROM large storage, and is equipped with a high-endurance battery, which make the diagnosis faster, more stable and more durable.
X-431 IMMO PLUS integrates powerful IMMO matching, IMMO programming, full-model system-wide diagnosis with plus functions and special functions. It is the best choice for intelligent maintenance of the IMMO matching tool in repair shops.
Strong core, large memory, super battery life
It integrates professional IMMO matching, IMMO programming, full-model system-wide diagnosis of plus functions and special functions. One machine with multiple functions and high performance cost ratio.
All-round IMMO matching, fast and accurate reading of IMMO data
Covering the IMMO matching function of many models in Asia, Europe, and America, more brands continue to be launched, up to 60+ brands

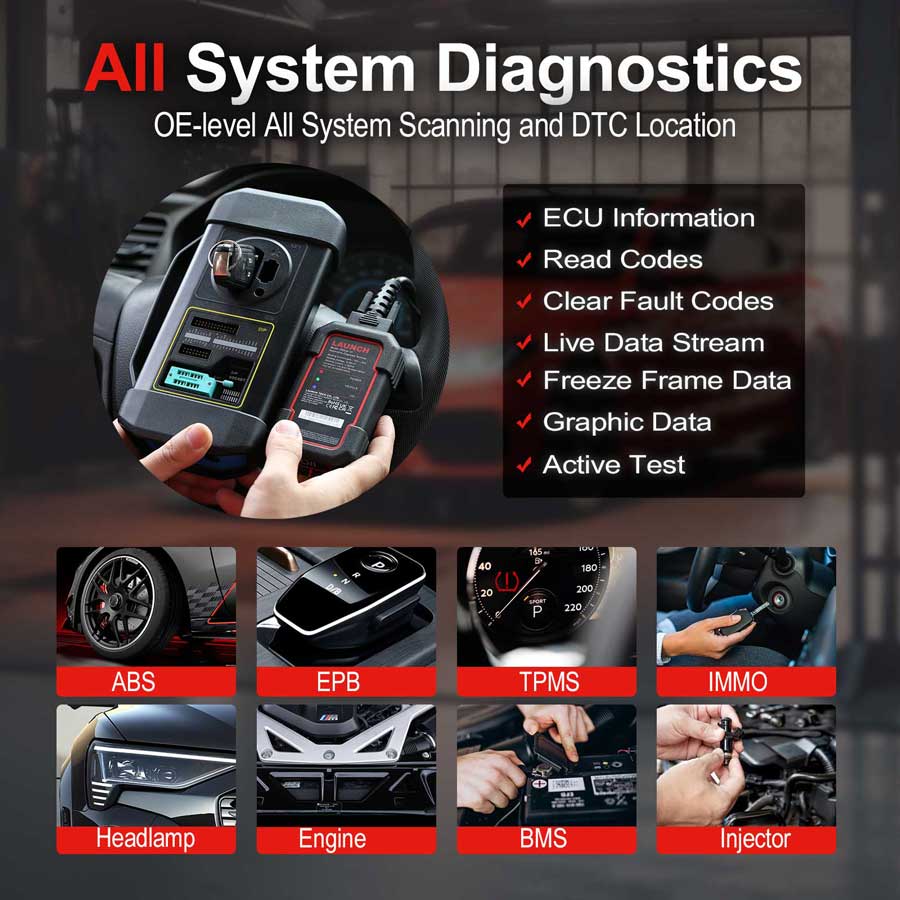

Support the full-model system-wide diagnosis of plus functions (read version information, read DTCs, clear DTCs, read data streams) for global 110+ brands
Support 39 special functions such as service lamp reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset
Support the VIN intelligent identification function to quickly enter diagnosis
Fast and accurate diagnosis
Supports key matching/copying, IMMO IC reading & writing, and ECU reading & writing, etc.
IMMO modules replacement: Support IMMO modules replacement of BMW, Mercedes-Benz, VW/Audi, Honda, Nissan, Hyundai, Kia, BYD, Changan, Wuling Baojun, GAC, SAIC Maxus, Great Wall Motor, Chery Car, Dongfeng Fengxing, JAC Passenger Car, etc
IMMO password reading: Supports the IMMO password reading of Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery Cars, Dongfeng Fengxing, JAC Passenger Cars, etc.
Key Matching:Support key matching of Ford, GM, Mercedes-Benz, BMW, VW/Audi, Porsche, Peugeot Citroen, Land Rover Jaguar, Honda, Toyota, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, Great Wall Motors, Chery Cars, JAC Passenger Cars, etc.
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for fifth-generation Audi (0AW/0B5) gearboxs.
4. Supports reading, writing & cloning of the ECU for fourth-generation VW UDS engines.
5. Supports BMW E chassis 8HP gearbox ECU program wiping.
6. Support Mercedes(Engine, Gearbox, EIS) and BMW(Gearbox) ECU IMMO data erase.
7. Supports 170+ Bosch, 10+ Siemens engine ECU and 18+ gearbox ECU BENCH mode clone.
- Bosch engine ECU: ME17，MED17，EDC17，MEVD17, etc.
- Siemens engine ECU: BMW(MSV90, MSD87, MSD85,MSD81, MSD80), Mercedes(SIM271DE2.0,SIM271KE2.0), VW/Audi(SIMOS8.6x,SIMOS8.5x,SIMOS8.4x), etc.
- Gearbox ECU: DQ200-MQB, DQ250XX, DL501 Gen1,VL381,VGS2- FCVT,VGS-FDCT,DQ400E,DL501 Gen2,DL382-7F,VGS2-FDCT,9G_Tronic,DQ380,DQ381, DQ500,AL551,AL450,AL552,AL951,8HPXX, etc.
Three functions in One
IMMO: read password, match key, replace module, data wipe
Clone: Engine, Gearbox
Diagnosis for Full function of all car series: diagnosis, coding, IMMO, initialization
|IMMO||IMMO password reading||√|
|ignition key learning||√|
|IMMO module replacement||√|
|module erase||Mercedes-benz, BMW|
|CLONE||engine module clone||√|
|Gearbox module clone||√|
|Functions comparison||IMMO ELITE||IMMO PLUS||X431 V+(with GIII)||PADVII (with GIII)|
|IMMO password reading||√||√||√||√|
|Ignition key learning||√||√||√||√|
|Mercedes-Benz BMW Volkswagen Audi Porsche IMMO||√||√||√||√|
|Engine gearbox ECU Clone(IMMO PROG)||√||√||×||√|
|Mercedes-Benz BMW Volkswagen Audi Porsche IMMO||√||√||√||√|
|IMMO password reading||√||√||×||×|
|Nissan B18 IMMO replacement without password||√||√||×||×|
|Toyota all keys lost(before 2022)||√||√||×||×|
|Volvo all keys lost(before 2022)||√||√||×||×|
|Peugeot all keys lost||√||√||×||×|
|Citroen all keys lost/module replacement||√||√||×||×|
|(Independent IMMO for each car series)||√||√||×||×|
|Basic functions of diagnostic software for each car series||√||√||√||√|
|Diagnostic software action test for each car series||√||√||√||√|
|Diagnostic software special functions for each car series||×||√||√||√|
|Commonly used RESET functions||√||√||√||√|
|Online programming, fault guidance||×||×||×||√|
|Operating system||Android 10.0|
|WIFI||2.4GHz/5GHz (dual frequency)|
|Interface||TYPE A *1 &TYPE C*1|
1pc x LAUNCH X431 IMMO PLUS Display tablet
1pc x VCI connector
1pc x Diagnostic cable
1pc x Password envelope
1pc x Type-A to Type-C USB cable
1pc x X-PROG 3 immobilizer programmer kit
1pc x Non-16pin adaptor cable kit
1pc x Power adaptor
