UK/EU Ship Autel MaxiSys MS908S Pro II Automative Diagnostics Tool With J2534 ECU Programming Coding AutoScan 2.0 Updated of MK908 Pro II

Product Description

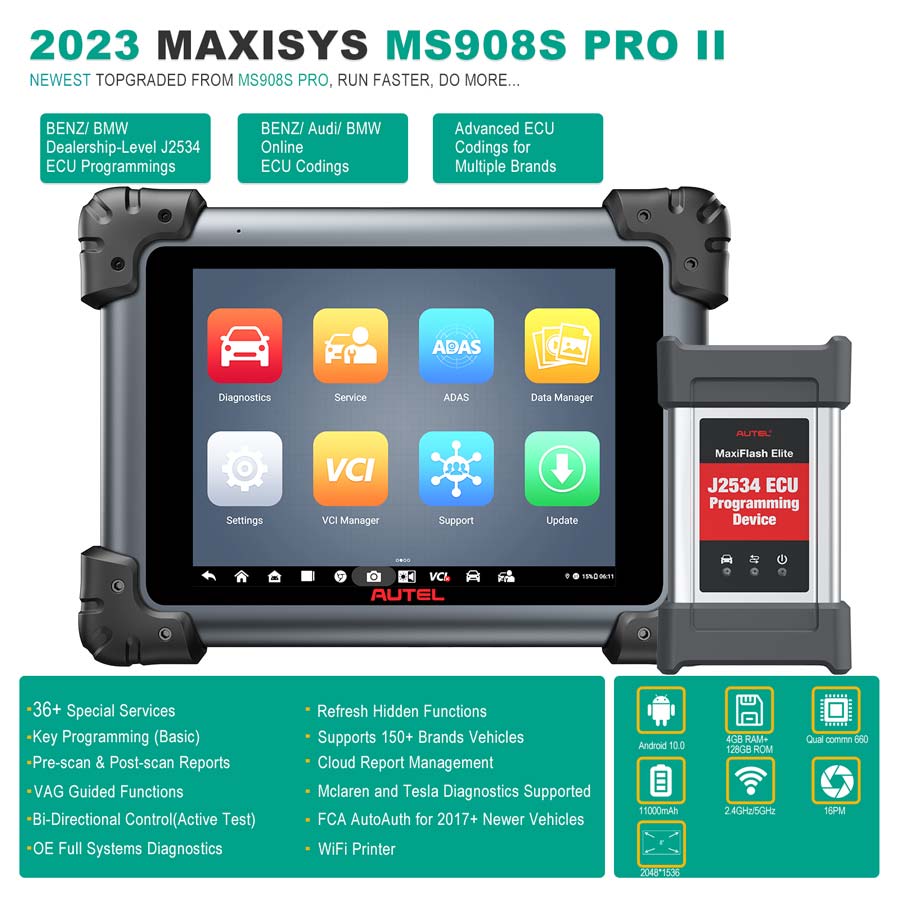

Autel MaxiSYS MS908S PRO II: 2023 J2534 ECU Programming Coding Adaption, Level-Up of MS908S Pro Elite MK908P II, Same Programming As MSUltra MS919 Elite II PRO, AutoScan 2.0, Active Test 36+ Services

Autel MaxiSYS MS908S Pro II is a 9.7-inch touchscreen advanced diagnostic tablet powered by an Octa-core processor with 128GB of storage memory running on Android 10.  Includes Bluetooth-enabled MaxiFlash VCI/ J2534 pass thru programming device. The MS908S Pro II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame data, view and graph live data, and perform adaptations and coding on U.S., Asian and European vehicles, 1996 and newer.


Autel MaxiSys MS908S Pro II Highlights:

• Upgraded of MK908P, MaxiSys Elite,MS908S Pro: Compare to Autel MK908P, autel MS908S Pro II with more functions (Cloud Service/ Remote Expert (since 05-15-2021), wider vehicle coverage(support MACLAREN and TESLA diagnostic), and better technical s-upport (both online seller and US local agents support ). MS908S pro II same Functions as MaxiSys Elite But saves 500 Bucks.
• J2534 ECU Programming for BMW/Benz: Equipped with 1000+ bucks valued J2534 programmer, Autel scanner MS908S Pro II is able to replace the existing software & firmware and program new ECUs (PCM, ECM) for specific BMW and Benz cars.
• Advanced Online ECU Coding: Upgraded from Autel MS906BT/ MK906BT/ MK906 Pro/ MS906S/ MK906 Pro/ MS906, Autel MS908S Pro II with online ECU Coding for software modifications to a vehicle, allowing the use of functions not available in the car when it left the factory. Online coding for VW/ Audi / Porsche/ Benz/BMW.
• VAG Guided & Refresh Hidden for VW/ Audi/ Skoda/ Seat: MS908S Pro diagnostic scan tool with VAG Guided functions with simple step-by-step procedures for quick and accurate car diagnostics. Refresh Hidden can change the settings already in the software and turn on or off some functions according to your needs.
• Bidirectional Control/Active Tests: Active Tests to determine whether a specific subsystem or component in vehicles goes well.
• 36+ Functions: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector Coding, SAS, Suspension, Throttle Matching, WIN DR ROOF, Seats, A/F, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, still growing.
• OE-Level Full Systems: MaxiSYS MS908S Pro ii is able to access all available modules like Engine, ABS, SRS, Trans, EPB, Chassis, Steering, Emission System, Fuel system, TPMS and etc to read/clear codes, view live data in text or graph, retrieve freeze frame data, perform active tests and special functions for accurate diagnosis.
• 10000+ Extensive Vehicle Coverage: KWP/CAN/UDS/OBDII, D-PDU/J2534/RP1210, 2018+ FCA SGW (AutoAuth); cover the overwhelming majority of vehicles made of US, Asian, and European.
• One-Year Free Software Update. After 1 Year, Autel MS908S PRO II Subscription cost 600USD/ Year. After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
• Languages: English, Spanish, Germany, Italian, French. The default language is English, if you need other languages, you need to apply for activation separately.

Autel MaxiSys MS908S Pro II  Newly Added Functions:

1. Full Diagnostics for McLaren & Tesla: Autel MS908S Pro II can work on McLaren, Tesla new energy vehicles to complete full system diagnosis, which other scanners cannot do.
2. FCA Vehicle Access: For the FCA vehicle equipped with the Security Gateway module, MS908S Pro II diagnostic scan tool can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations. Compatible with Fiat, Chrysler, Alfa Romeo, etc.
3. Battery Tests (work with BT506): Combined with the BT506 battery detector, MS908S Pro II can scan the BMS module, detect the battery type, aging condition, and storage condition, and give appropriate maintenance advice. Note: BT506 needs extra purchases.
4. Digital Inspection Compatible with MV105/MV108S: This bundle includes Autel MV108 digital inspection camera. It can turn your MaxiSys MS908S Pro scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
5. Oscilloscope: With Autel MP408,It can perform electrical and electronic circuit testing and monitor signal activity
6. Pre & Post-Scan: Pre- and post-scan reports keep your clients informed of the repair details and provide them with the evidence to settle insurance c~laims.
7. Scan VIN and Scan License: These two methods provide faster access to car information such as car manufacturer, model year, model, body type and code, engine code, and assembly location. This saves more time than manually entering the VIN.
8. Wi-Fi Printing: You can easily print the above diagnostic reports wirelessly from your diagnostic scanner via a Wi-Fi printer.
9. D-PDU/RP1210 New Protocols: Adds the latest D-PDU/RP1210 Protocols to cover newer vehicles.

Autel MaxiSys MS908S Pro II Features:

• Qualcomm 660 Octa-core processor (2.2GHz Quad-core A73 + 1.8 GHz Quad-core A53)
• 9.7-inch touchscreen Wi-Fi tablet
• Bluetooth-enabled VCI/J2534 pass thru programming device with wireless range up to 70 meters
• Rechargeable lithium battery delivers 7.5 hours of continuous performance on a single charge
• Comprehensive Service Menu for direct access to most commonly performed service tasks
• 128G storage memory for maintaining of all needed brand diagnostics software
• Android 10.0 operating system
• Extensive vehicle coverage Comprehensive Service Menu for direct access to most commonly performed service tasks
• Read/Erase Codes on all available systems
• Perform bi-directional active tests
• Perform adaptations and coding
• View freeze frame data and view and graph systems live data

Expanded Features:

* Combined with the Autel BT506 Battery Detector, Combined with the BT506 battery detector, MS908S Pro II can scan the BMS module, detect the battery type, aging condition, and storage condition, and give appropriate maintenance advice. Note: BT506 needs extra purchases.
* Combined with MaxiVideo MV108, This bundle includes Autel MV108 digital inspection camera. It can turn your MaxiSys MS908S Pro II scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
* Combined with Autel TS508, is a perfect combination with a favorable investment, which can help you to solve the hardest problem.

Hardware Advantage:

1. Take a big leap directly to Autel fastest Android 10.0 OS, instead of old Android 4.4.4 ;
2. Qualcomm 660 8-core CPU, accelerate 200% diagnostic tasks;
3. Memory of 4+128G without any slow loading, increase by twice as much memory as before;
4. Dual WiFi of 2.4 & 5GHz;
5. 16M Rear Camera, scan and take clearer diagnostic images;
6. 2048*1536 9.7" touch screen for extremely clear & intuitive reading experience;
7. J2534/D-PDU/RP1210 Protocols for wider & newer car coverage.

Software Advantage:

1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
2. MS908S Pro II is Easy and intuitive navigation makes finding what you need simple and fast
3. MS908S Pro II's Open source Android Operating System for fast boot-up and multitasking
4. Displays live data in text, graph, analog and digital gauge for easy data review and analysis
5. Configures display options, sets triggers, records and playbacks results with one touch
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


Functions:

1. ECU Online Programming & Coding

Autel MS908S Pro II comes with MaxiFlash Elite VCI J2534 Pass-Thru ECU Programming Tool, capable of replacing the existing software/ firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. Autel Scanner MS908S Pro II support both online & offline ECU programming.

1) Online Programming for Benz & BMW:

Autel MS908S Pro II comes with built-in softwares that able to perform smart & effective online programming functions for all-chassis Ben-z & BM-W vehicles. All crucial programming data are saved online in Autel Cloud servers. The operators just need to follow the on-screen instructions to easily complete the whole process:
* Replace the existing software/firmware in the ECU.
* Program the new blank ECUs.
* Update the ECU software to the latest version.

2) Offline ECU Programming Functions:

The MaxiFlash Elite VCI is a multi-protocol Pass-Thru vehicle interface and is fully compliant SAE J2534-1 & SAE J2534-2 (March 2006) device. Specially designed to provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus, MaxiFlash Elite offers the most significant features desired by OEM customers: reliability, fast performance and flexibility.

If you have OE-authorized programming software, this J2534 pass-through vehicle interface will empower you manufactuer level capability to perform OE-level engineering corrections, fix complex drivability issues, build the communication and program ECUs to save cost and win more business.
Offline ECU programming support many popular car brands and the vehicle coverage is still growing.

2. OE-Level All System Diagnosis with Unmatchable Vehicle Coverage

Autel MaxiSys MS908S Pro II comes with lined connection through USB cable and wireless connection through the MaxiVCI to prevent the inconvenience of short cable.
Autel MS908S Pro II can communicate with 99% global OBDII vehicles including some of the latest models in 2023 and is able to access almost all available modules to perform general diagnosis such as read & erase codes, display live data in graphics that can be merged, freeze frame data record, active test, ECU info retrieving and so on. The included vehicle communication interface MaxiFlash Elite is able to work wirelessly in 70 meters (230 ft) range with no latency.

1) ECU Information -provides the retrieved ECU information in detail.
2) Read Codes -displays detailed information of DTC records retrieved from the vehicle control module.
3) Erase Codes -erases DTC records and other data from the ECM.
4) Live Data -retrieves and displays live data and parameters from the vehicle's ECU.
5) Active Test -provides specific subsystem and component tests.


3. Full Bi-Directional Control
The diagnostic scan tool supports bi-directional control to check the vehicle operating conditions. The bi-directional control of the ECM in the Component Test enables the MS908s Pro II to transmit control commands to operate the vehicle systems. Like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.


4. Smart Auto VIN & Auto Scan:
Get rid of manual input and use the Auto IN/Scan VIN/Scan License feature to automatically read the vehicle identification number, and then you can perform the diagnostics for the vehicle you get.

5. Pre- and Post-Scan Reports & Wi-Fi Print:
* Pre-SCAN reports allow the technician to create and submit pre-repair diagnostic reports for expedited insurance carrier approval of repair estimates, and to help avoid additional insurance authorizations.
* After repairs finish, you can generate a Post-Scan report to confirm all pre-repair faults are gone and detect if there are new DTCs during the repair. The pre-scan report and post-scan report can merge into a single report file.


6. Special Services Functions

Various scheduled service and maintenance tasks includes: Brake Bleed, Oil Reset, EPB, BMS, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset, Headlamp

* Transmission Adaptation: Reset the adaptive shifting points in your automatic Transmission Control Unit.
* Suspension Calibration: Calibrate the suspension height.
* Crankshaft Variation Learn: Enables the computer to compensate for part manufacturing tolerances. To accurately detect an engine misfire throughout the engine RPM range.
* SAS Calibration: Perform calibration of the steering angle sensor, which permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM.
* Battery Registration: Register the new battery to the E_CU after replacement.
* Injector Coding: Coding injectors after replacement.


Extensive Vehicle Coverage:

• MK908P II aims to offer one-stop repairing solution for 99% vehicles even with some luxury cars, such as Porsche, Maserati, McLaren, Lamborghini, etc. Up to now, MK908P II has supported 150 cars brands from 1996 to 2023 to greatly boost your reparing business.

Protocol Supported:

• KWP/ CAN/ UDS/ OBDII, D-PDU/ J2534/ RP1210, 2018+ FCA SGW (AutoAuth); cover the overwhelming majority of vehicles made of US, Asian, and European.

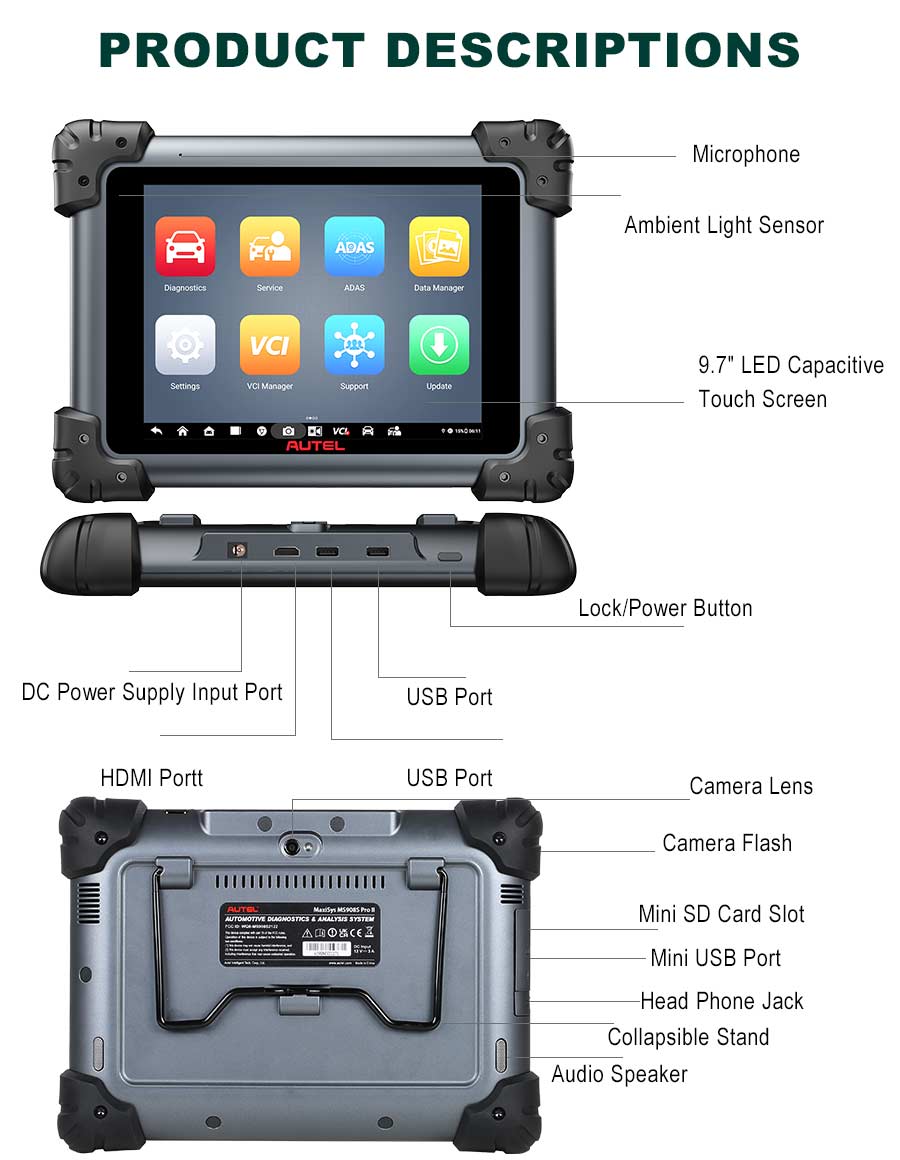

Specifications:


Operating System	Android™ 7.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 +   1.8GHz Quad-core A53)
Memory	4GB RAM &128GB On-board Memory
Display	9.7 inch LED capacitive touch screen with 2048x1536 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB   2.0 (2 USB TYPE-A ports and a Mini USB port) BT V5.0 + BR/EDR SD Card (Support up to 64GB) HDMI
Camera(rear)	16 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and   45°C
Input Voltage	12V (9-24 V)
Power Consumption	6.5W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHXD)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed,   Middlespeed, Lowspeed   and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H   Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN

 Comparison:


	MaxiSys MS908S Pro II	MaxiSys MS908S II	MaxiSys MS906TS	MaxiSys MS906BT	MaxiSys MS906
All Systems DTC Scan	√	√	√	√	√
Service   Function	√	√	√	√	√
Bi-Directional   Control	√	√	√	√	√
Auto   VIN Technology	√	√	√	√	√
ECU   Coding	√	√	√	√	×
ECU   Programming	√	×	×	×	×
MaxiFix   Cloud-Based Info System	√	√	√	√	√
Data   Manager	√	√	√	√	√
Shop   Manager	√	√	√	√	√
Remote   Support	√	√	√	√	√
Pre-scan   Report & Post-scan Report	North America Only	North America Only	√	North America Only	North America Only
Print   Feature	√	√	√	√	√
Multi-language   Support	√	√	√	√	√
Domestic/Asian/European Coverage(1996-Present)	√	√	√	√	√
Display   Size	9.7"	9.7"	8"	8"	8"
Wireless   VCI	MaxiFlash Elite	Wireless Diagnostic Interface	MaxiVCI V100	MaxiVCI V100	×
Battery   Life	11000 mAh 3.7 V	11000 mAh 3.7 V	10000 mAh 3.7 V	10000 mAh 3.7 V	5000 mAh   3.7 V
Memory Storage	128GB	128GB	32GB	32GB	32GB
Connector   Kit	√	√	√	√	√
TPMS	×	×	√	×	×
Oscilloscope	√	√	√	√	×
Inspection   Camera	√	√	√	√	×
ADAS	√	√	×	√	√

Package Includes:

1pc x Autel MaxiSYS MS908S Pro II Tablet
1pc x Main Cable — 1.5 m in length
1pc x Standard 2.0 USB Cable
1pc x Mini USB Cable
1pc x AC/DC External Power Adapter
1pc x Auxiliary Power Outlet Adapter
1pc x Ethernet Serial Cable
2pcs x Spare Fuse
1pc x Clamp Cable
1pc x USB to Ethernet Adapter
1pc x BMW Ethernet Cable


----------------------------------------------------------------------------------------------------------------------------------------
