2 Years Free Update Ship from EU OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version 8inch Tablet with Free FCA 12+8 Universal Adapter +Toyota Key Simulator + NISSAN-40 BCM Cable

Product Description

×

OBDSTAR X300 Key Master DP Plus Diagnosis and Auto key programmer

Get free gifts:

•  FCA 12+8 Universal Adapter
• OBDSTAR Toyota Key Simulator
• NISSAN-40 BCM Cable

OBDSTAR X300 Key Master DP Plus Hardware Advantages:


1. Built-in VCI box

2. 8-inch touchscreen

3. Charge directly via OBD interface

4. Practical and high-end gift box

5. Industrial design with silicone case

6. Back bracket design:prop on the steering wheel or stand on the table

7. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter

8. Add the clip of reading SOP 8PIN EEPROM

9. C001/C002 circuit board to read and write chip data with welding

10. IMMO induction coil to detect the key induction coil failure of the vehicle.

11. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Two Years Free Update


OBDSTAR X300 Key Master DP Plus Software Advantages:



IMMO:

1. EEPROM

2. Renew Key

3. Key programming

4. Remote programming



Cluster Calibrate: wild vehicle coverage, pls check the carlist

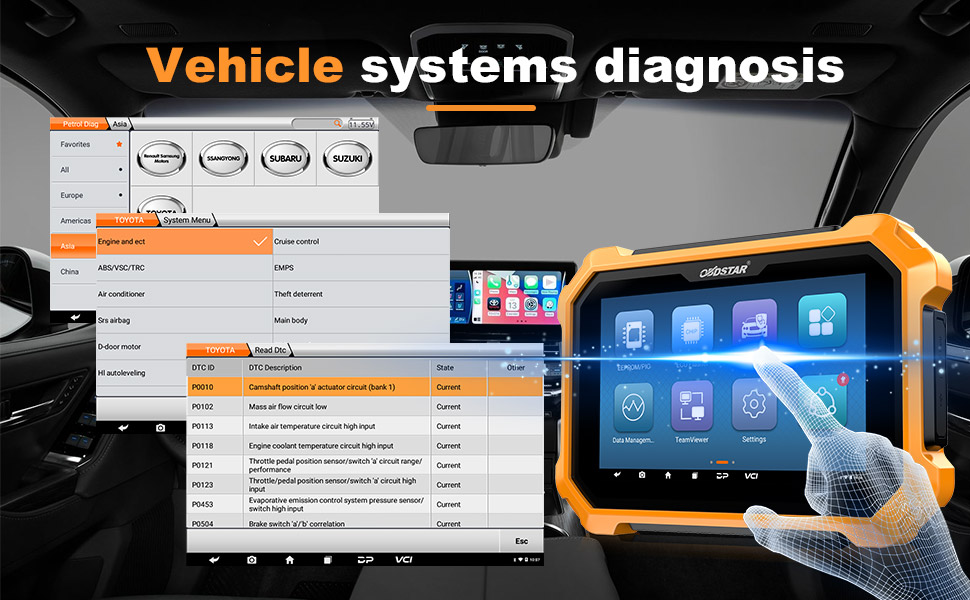

Diagnosis: realize all vehicle systems diagnosis



Special Functions

TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/

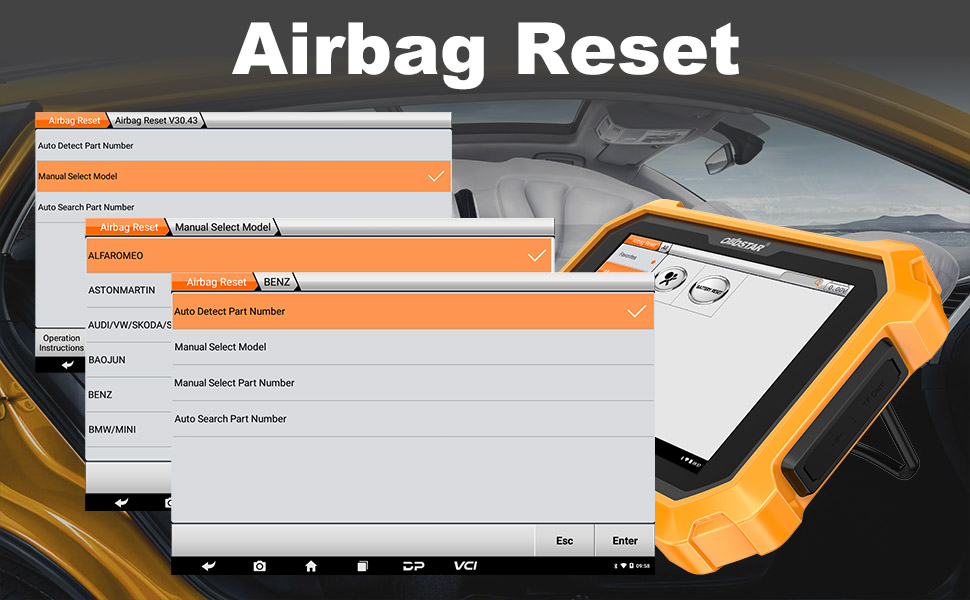

Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset/Airbag Reset



ECU Clone


1. ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.



2. Clone directly when replacing a new or a used ECU!

Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!



3. Three features for ECU Clone:

A. Free of 4S online:

 break monopoly from 4S, benefiting automobile maintenance industry

B. Simplified operation procedures: realize foolproof operation

C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)


Add “Help” Functions

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.

2. Carlist and upgrade announcement, all details are available on the device

3. Customers can look up the features or uniquely support functions on the device

4.  Help notes: built-in help notes for each model or function

5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient



TECHNICAL PARAMETERS


● Operation system: Android 5.1.1

● CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz

● Battery: 3700mA, rechargeable polymer lithium battery

● Extension memory card: 32G Micro SD (TF) card supported

● Memory capacity:1GB

● Storage capacity: 32GB

● LCD: 8.0 inch

● LCD resolution: 1280*800

● Touch screen: Capacitive touch screen

● Camera: 5 mega rear view camera

● Wi-Fi: supported

● Working temperature: -10℃  ~  55℃（14℉  ~  131℉ ）

● Storage temperature: -20℃  ~  70℃（-4℉  ~ 158℉ ）

● Weight: about 1.0 Kg

● Dimension: 254mm*174*mm*35mm





CONFIGURATIONS

(SP326-C) A Package:

Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable)+others(Ignition coil+Remote tester)



(SP326-B) B Package:

Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable)+others(Ignition coil+Remote tester)



(SP326) C Package:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable)+others(Ignition coil+Remote tester)

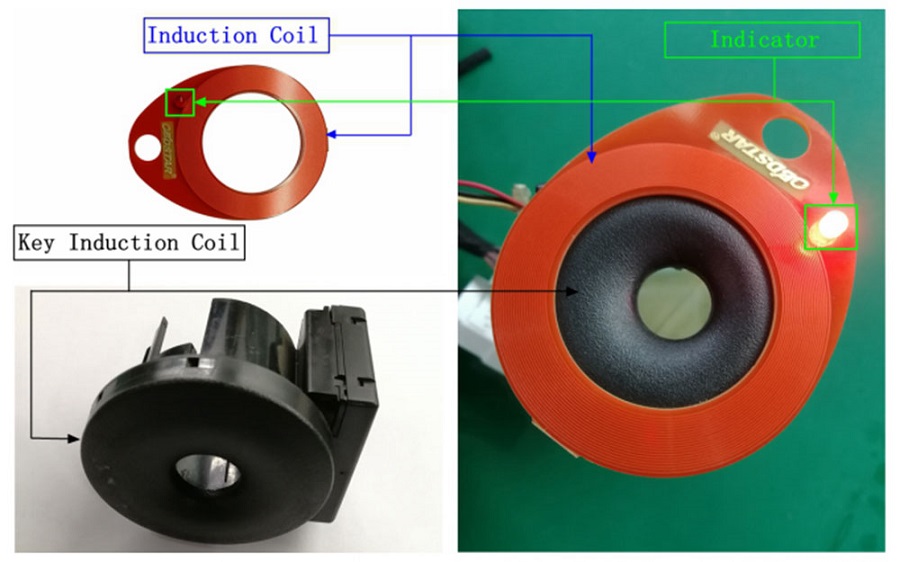

I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.
II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.
II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

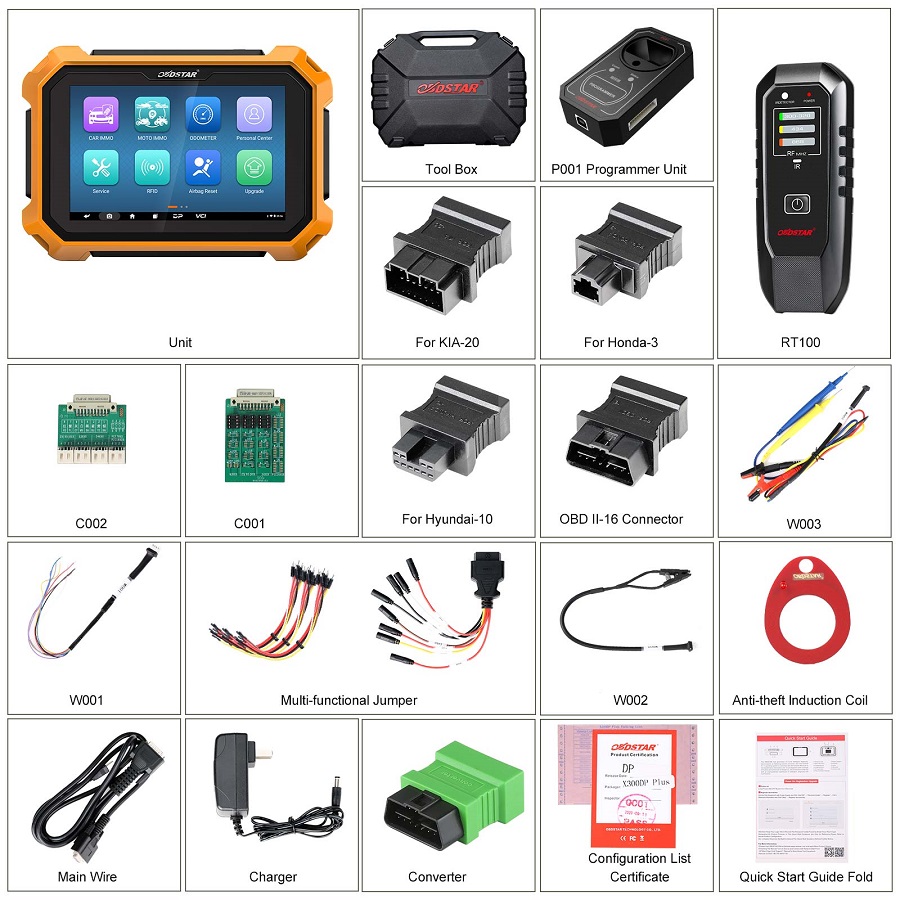

Package Includes:


1pc x main unit

1pc x tool box

1pc x P001 programmer unit

1pc x for KIA-20 adapter

1pc x for Honder-3 adapter

1pc x for Hyundai-10 adapter

1pc x RT100

1pc x C001
1pc x C002

1pc x OBD2-16 connector

1pc x W001 cable

1pc x W002 cable

1pc x W003 cable

1pc x multi-functional jumper

1pc x anti-theft induction coil

1pc x main wire

1pc x charger

1pc x converter

1pc x configuration list

1pc x certificate

1pc x quick start guide fold



----------------------------------------------------------------------------------------------------------------------------------------
