7% off

XTUNER PT101 12V/24V Power Probe Circuit Tester DC/AC Electrical System Diagnostic Tool Voltage Current Test Car battery Tester

Brand: XTUNER Item No. AD167 In Stock. History 2 sold.

Latest price: £59.99
Buy Now: £56.00 7% off
UK Ship Products!

EU Ship Products!

For Non-UK&EU Items, we ship it by Yanwen No Tax Express!

Autel IM508 Global Version Avail! No IP Block Problem!


Contact US
WhatsApp: +86 19947637411
Email: sales@cartool.co.uk
Shipping:
Free Shipping Standard Flat Rate Shipping ServiceEstimated delivery time: 7-15 working days.See details»
Weight:
1.3KG
Package:
28.5cm*23cm*7cm     ( Inch: 11.22*9.06*2.76 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »

Product Description

XTUNER PT101 circuit tester works as an AVOmeter, test light, built-in flashlight, short circuit indicator, relay/com- ponent tester, continuity tester and bad ground indicator.<br />It provides great simplicity for users to check circuitry condition.
XTUNER PT101 12V/24V Power Probe Circuit Tester DC/AC Electrical System Diagnostic Tool








XTUNER PT101 Features:




Protection design for safety
Read results on the LCD screen
Read results on the LCD screen

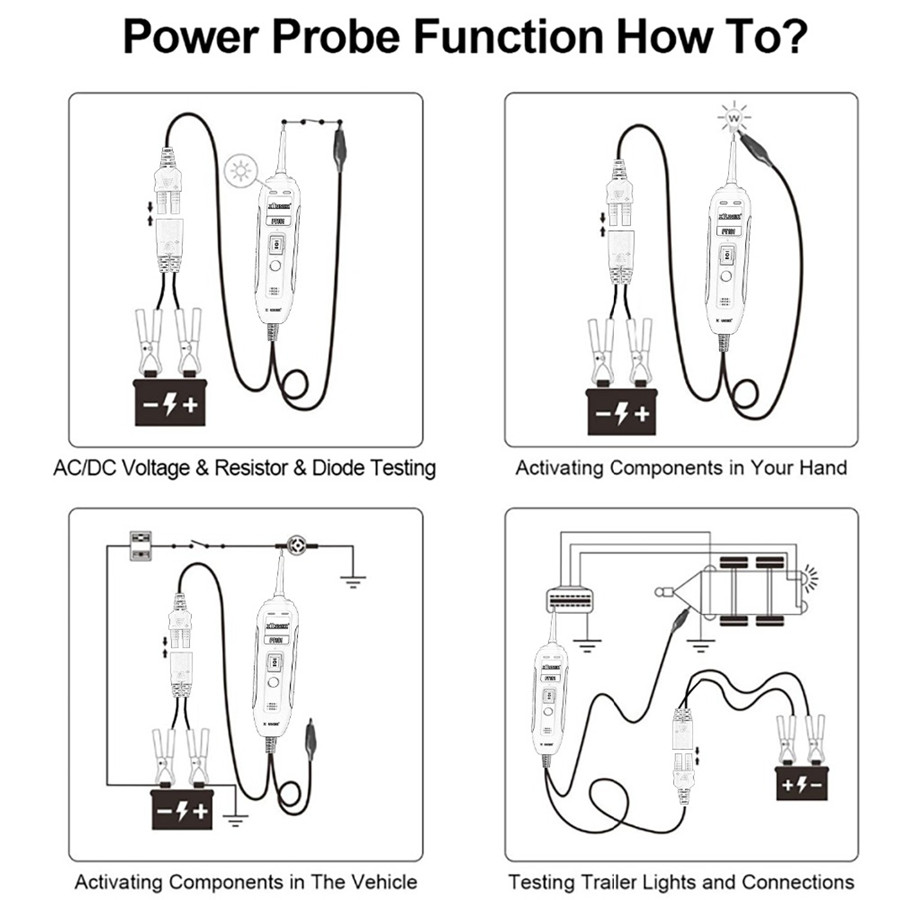

Circuit tester with multi-function
Four diagnostic modes for 12v ・ 24v
Support multiple vehicles and after-sales warranty
Large and colorful LCD screen, easy to navigate the user menu
Supply power and ground for functional component test
AC-RMS, AC Peak to peak, frequency and pulse width for signal test
Digital voltmeter with min/max voltage capturing
Displays up to 60 volts and resolution of 0.01 volt
8 amp circuit breaker protection, automatically reset, no button to push
20 foot power lead and extra 20FT extension cable
Ergonomic housing design with rugged and water resistant specification




DC Voltage Testing     AC Voltage Testing    Resista nee Testing    Diode Testing      Current Testing


Item Parameters
DC Voltage Range 0-40V
Resistance Range 0 Ohms to IM Ohms
Rating Current    1-8Amp
Frequency Response Of Tone 40Hz to 20KHz
Test Standard -100% current: Hold > I hour
-500% current: trip in one hour
-200% current: trip in 3-30 seconds
-300% cur re nt: trip in 0.5—4.0 seconds


Package includes:
1pc x User Manual
1pc xCigarette Lighter Adapter
1pc x Battery Hookup Clips
1pc x Probe Tip
1pc x Extension Cable(20 ft)
1pc x Rugged Molded Case
1pc x Power Assist Cable
